Linear Displacement Sensors

We go the distance with our displacement sensors and gauging instruments. Our Application Advisor will help you find the technology for your application. LVDT's or Potentiometers, Draw Wires or Ultrasonic Sensors, we only carry quality sensors.

8710

Potentiometer
Rectangular Profile Housing
Anodized Aluminum Housing
Connection: 5-pin 9991 Plug Connector
Duration: 10^8 Operations
Displacement Speed up to 10m/s

Type	Potentiometer
Full Scale	25 mm, 50 mm, 75 mm, 100 mm, 150 mm
Output	Potentiometric
Non-Linearity	±0.05 % FS, ±0.10 % FS, ±0.20 % FS
Resolution	0.01 mm
Excitation	0 - 25 V DC, 0 - 60 V DC

8719

Potentiometer
Rectangular Profile
Anodized Aluminum Housing
Connection: 5-pin 9991 Plug Connector or 3.0m Integral Cable
Durability: 100 x 10^6 Movements

Type	Potentiometer
Full Scale	50 mm, 100 mm, 130 mm, 150 mm, 175 mm, 200 mm, 225 mm, 275 mm, 300 mm, 375 mm, 400 mm, 450 mm, 500 mm, 600 mm, 750 mm, 900 mm
Output	Potentiometric
Non-Linearity	±0.05 % FS
Resolution	0.01 mm
Excitation	0 - 50 V DC

8739

LVDT
With or Without IN-LINE Amplifier
Rod Profile
Nickel-Plated Stainless Steel 25 (Sensor)
Aluminum (IN-LINE Amplifier)
Connection: 2.0m Integral Cable
Vibration-Free & Wear Resistant

Type	LVDT
Full Scale	0.5 mm, 1 mm, 2 mm, 2.5 mm, 5 mm, 10 mm
Output	0 - 10 V DC
Non-Linearity	±0.25 % FS
Resolution	Infinitesimal
Excitation	13.5 - 28 V DC

8740

LVDT
Integrated Measuring Amplifier, 0-5 V Output
Rod Profile Housing
Nickel-Plated Stainless Steel
Connection: 2.0 Integral Cable
Immune to Vibration or Impact
0-10 V, 4-20mA Output (Option)

Type	LVDT
Full Scale	1 mm, 2 mm, 5 mm, 10 mm, 25 mm, 50 mm, 100 mm, 150 mm
Output	0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA
Non-Linearity	±0.25 % FS
Resolution	Infinitesimal
Excitation	9 - 28 V DC

8741

LVDT
Integrated Measuring Amplifier, 0-5 V Output
Rod Profile Housing
Nickel-Plated Stainless Steel
Connection: 7-pin 9952 Connector
Immune to Vibration or Impact
0-10 V, 4-20mA Output (Option)
Special Versions on Request

Type	LVDT
Full Scale	1 mm, 2 mm, 5 mm, 10 mm, 25 mm, 50 mm
Output	0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA
Non-Linearity	±0.25 % FS
Resolution	Infinitesimal
Excitation	9 - 28 V DC

8712

Potentiometer
Rectangular Profile Housing
Anodized Aluminium Housing
Connection: 5-pin 9991 Plug Connector
Durability: 10^8 Operations

Type	Potentiometer
Full Scale	10 mm, 25 mm, 50 mm, 100 mm, 125 mm, 150 mm
Output	Potentiometric
Non-Linearity	±0.05 % FS, ±0.10 % FS, ±0.20 % FS, ±0.30 % FS
Resolution	0.01 mm
Excitation	0 - 14 V DC, 0 - 25 V DC, 0 - 50 V DC

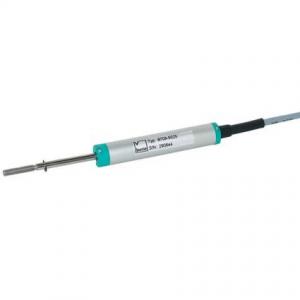

8709

Miniature
Rod-Style Design
Anodized Aluminum Housing
Connection: 1.0m Integral Cable
Very Long Service Life
Coupling with Ball Joints or Flange Fastening by Request

Type	Potentiometer
Full Scale	25 mm, 50 mm, 75 mm, 100 mm, 125 mm, 200 mm, 250 mm
Output	Potentiometric
Non-Linearity	±0.05 % FS, ±0.10 % FS, ±0.20 % FS
Resolution	0.01 mm
Excitation	0 - 20 V DC, 0 - 40 V DC, 0 - 60 V DC

8718

Potentiometer
Rodless, Square Profile
Anodized Aluminum Housing
Connection: 5-pin 9991 Plug Connector
Displacement Speed up to 10 m/s
Durability > 10^8 Operations

Type	Potentiometer
Full Scale	100 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 750 mm, 1000 mm, 1250 mm, 1500 mm, 1750 mm, 2000 mm
Output	Potentiometric
Non-Linearity	±0.05 % FS, ±0.10 % FS
Resolution	0.01 mm
Excitation	0 - 50 V DC

8738

Magnetic Scale
Rod Profile Housing
Anodized Aluminum Housing
Connection: 2.5m Integral Cable
Durability: 5 x 10^6 Cycles
Vibration Resistant & Dust Proof

Type	Magnetostrictive
Full Scale	5 mm, 12 mm, 25 mm, 30 mm, 50 mm, 100 mm
Output	Quadrature TTL
Non-Linearity	±0.001 % FS
Resolution	0.0005 mm, 0.001 mm
Excitation	5 V DC

87240

Cylindrical Housing
Stainless Steel Housing
Connection: 0.45m Integral Cable
Free of Hysteresis
Suitable for Operation in Hydraulic Fluid up to 3 bar

Type	LVDT
Full Scale	2.54 mm, 5.08 mm, 12.7 mm, 25.4 mm, 50.8 mm, 101.6 mm, 152.4 mm
Output	V/V DC
Non-Linearity	±0.50 % FS, ±1.00 % FS
Resolution	Infinitesimal
Excitation	6 V DC, 15 V DC, 24 V DC, 30 V DC
