Ohmmeters

Products • Electrical Testing

Whether measuring ranges of Milliohms to Teraohms our Ohmmeters offer a value proposition you can't resist. Burster Precision Ohmmeters feature best in class accuracy, while delivering fast Pass/Fail results over a variety of different interfaces.

2316

2316
  • Measuring ranges from 2 mΩ to 200 kΩ
  • Resolution up to 0.1 μΩ
  • Accuracy 0.03 % Rdg.
  • Autorange
  • Temperature compensation for all materials
  • Thermal e.m.f. compensation
  • Input voltage protection up to 400 Vrms
  • RS232 and PLC interface standard (USB and Ethernet option)
Range2 mΩ, 20 mΩ, 200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ
Error≤ 0.03 %
InterfaceRS-232, USB, Ethernet, Digital I/O, PLC
Supply110 V AC, 230 V AC

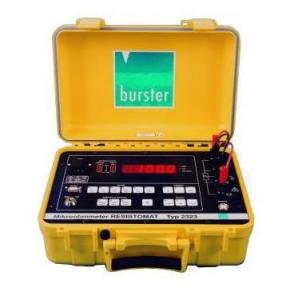

2323

2323
  • 6 ranges from 600 μΩ to 60 μΩ
  • High resolution up to 0.1 μΩ
  • Measuring current up to 10 A
  • Input protected up to 415 Vrms
  • Rugged industrial design
  • RS232 data output
Range6 mΩ, 60 mΩ, 600 mΩ, 6 Ω, 60 Ω
Error≤ 0.2 %
InterfaceRS-232
SupplyBattery

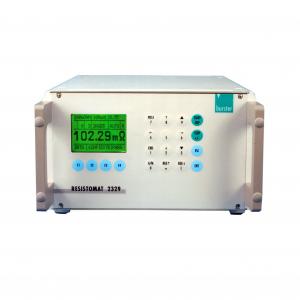

2329

2329
  • Measurement range from 200 mΩ ... 200 kΩ
  • Resolution up to 10 μΩ
  • Measurement accuracy 0.03 % rdg.
  • Automatic measurement range selection
  • Up to 50 measurements and evaluations per second
  • Temperature compensation for all materials
  • Thermovoltage compensation
  • Dry-circuit measurement in accordance with DIN IEC 512
  • Data logger for 20 000 measurement values
  • RS232 and PLC interface standard (IEEE488, USB and Ethernet option)
Range200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ
InterfaceRS-232, USB, Ethernet, Digital I/O, IEEE 488, PLC
Supply110 V AC, 230 V AC

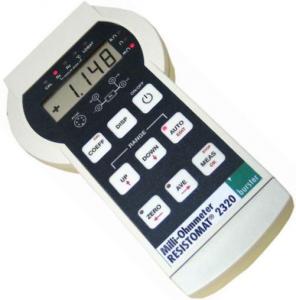

2320

2320
  • Measuring ranges from 40 mΩ to 4 kΩ
  • Resolution up to 10 μΩ
  • Measuring accuracy 0.05 %
  • Automatic measuring range selection
  • Temperature compensation
  • Bipolar measurement
  • Input voltage protection up to 415 Vrms
Range40 mΩ, 400 mΩ, 4 Ω, 40 Ω, 400 Ω, 4 kΩ
Error≤ 0.05 %
SupplyBattery

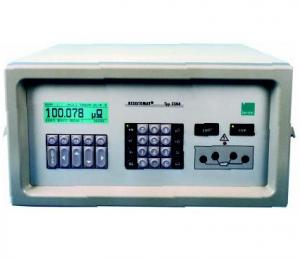

2304

2304
  • Automatic choice of measuring ranges from 200 ohms to 20 ohms
  • Resolution up to 1 ohm¸
  • Standard interfaces IEEE488, RS232, RS485, USB (option)
  • Checking of tolerances, classification with statistics
  • Measuring error ≤ 0.01 %
  • Future-orientated measuring method with thermal e.m.f. compensation.
  • High level of stability due to constant comparisons with internal reference values.
  • Current regulation results in voltage-free disconnection, calculation of cooling curves of coils.
  • Setting for measuring current entry for absolute or relative limits, classification with statistics, bar display for calibration of measuring probes, determination of resistivity, and many other functions.
Range200 µΩ, 2 mΩ, 20 mΩ, 200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ
Error≤ 0.01 %
InterfaceRS-232, RS-485, USB, Ethernet, IEEE 488
Supply110 V AC, 230 V AC

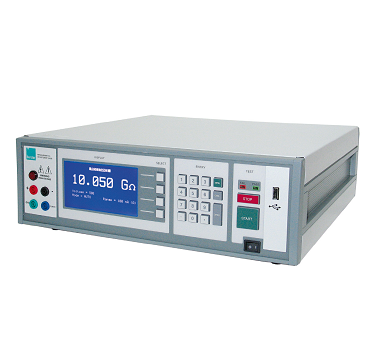

2408

2408
  • Resistance range 1 kΩ ... 100 TΩ
  • Current range 0.1 pA ... 1 mA
  • Automatic range selection
  • Test voltage selectable from 1 V ... 1000 V
  • Limit indicator
  • Measurement results storable on external USB flash drive
  • RS232 interface (IEEE488, USB and Ethernet optional)
Range1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ, 10 TΩ, 100 TΩ
Error≤ 1 % , ≤ 5 %, ≤ 10 %
InterfaceRS-232, USB, Ethernet, IEEE 488
Supply110 V AC, 230 V AC

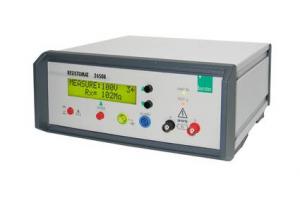

24508

24508
  • Resistance measurement range from 50 kΩ ... 10 TΩ
  • Current measurement range 10 pA - 10 mA
  • Automatic / manual switch of measurement range
  • Test voltage 45 V, 100 V, 250 V, 500 V
  • Limit value indicator
  • RS232 interface (USB and Ethernet option)
Range1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ, 10 TΩ, 100 TΩ
Error≤ 1 % , ≤ 5 %, ≤ 10 %
InterfaceRS-232, USB, Ethernet
Supply230 V AC
