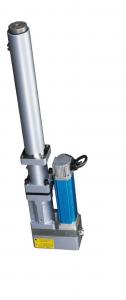

Coretec Servo Presses feature integrated force & displacement sensor feedback for closed loop control, signature analysis and data collection. Superior speed & control, in a cost effective package that is simple to program is no longer unattainable.
CS05
- Force range of 5 kN
- Stroke ranges available up to 200 mm
- Maximum speeds of up to 300 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using: Limits, Envelopes & Windows
- All popular PLC Interfaces: EthernetIP, Digital I/O, DeviceNet, Profibus & CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 5 kN |
| Max Speed | 300 mm/s |
| Stroke | 100 mm, 250 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
CS10
- Force range of 10 kN
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 180 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 10 kN |
| Max Speed | 180 mm/s |
| Stroke | 100 mm, 250 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
CS20
- Force range of 20 kN
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 270 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 20 kN |
| Max Speed | 270 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
CS30
- Force range of 30 kN
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 240 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 30 kN |
| Max Speed | 240 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
CS50
- Force range of 50 kN
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 150 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 50 kN |
| Max Speed | 150 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
BS100
- Force range of 100 kN
- Stroke ranges available up to 350 mm
- Maximum speeds of up to 150 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 100 kN |
| Max Speed | 150 mm/s |
| Stroke | 100 mm, 200 mm, 350 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
BS200
- Force range of 200 kN
- Stroke ranges available up to 200 mm
- Maximum speeds of up to 110 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
| Max Force | 200 kN |
| Max Speed | 110 mm/s |
| Stroke | 100 mm, 200 mm |
| Interface | Digital I/O, Profibus, DeviceNet, EthernetIP, CC-Link |
MS02
- Force range of 2 kN
- Stroke ranges available up to 100 mm
- Maximum speeds of up to 225 mm/s
- PC independent Force vs. Displacement Signature
- Analysis using:
- o Limits
- o Envelopes
- o Windows
- All popular PLC Interfaces:
- o EthernetIP
- o Digital I/O
- o DeviceNet
- o Profibus
- o CC-Link
- All limits, data and program info can be read and written through the PLC
