- Physicom Corp.
- Measurement & Control Solutions

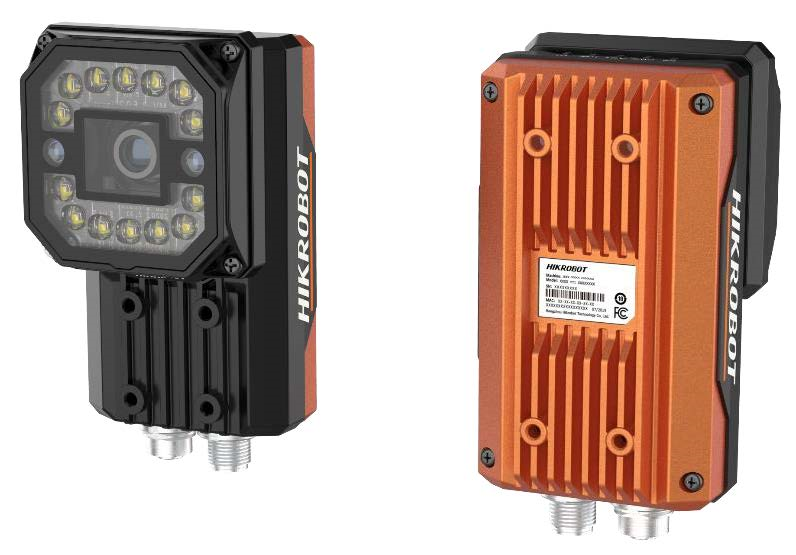

MV-SC7016PC, 1.6 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 1.6 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Color Size, Edge Width Measurement |
| Recognition Tools | OCR, Color Recognition, Color Contrast, Code Recognition, DL Object Detection |
| Deep Learning / AI | Defect Detection |
MV-SC7120PM-00C-NNN, 12 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition, DL Object Detection, DL Classification |
| Mono/Color | Mono |
| Communication | Ethernet/IP, Profinet, Modbus, FTP, TCP Client/Server, UDP Server, RS-232 |
MV-SC7060PM, 6 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 6 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition, DL Object Detection, DL Classification |
| Deep Learning / AI | Defect Detection |
MV-SC5200M-00C-NNN, 20 MP
- Integrates general vision algorithms to achieve location, measurement,
- recognition, etc.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 20 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition |
| Mono/Color | Mono |
MV-SC7200PM-00C-NNN, 20 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 20 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition, DL Object Detection, DL Classification |
| Mono/Color | Mono |
MV-SC7060PM-00C-NNN, 6 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
| Resolution | 6 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition, DL Object Detection, DL Classification |
| Deep Learning / AI | Defect Detection |
MV-SC7060M-00C-NNN, 6 MP
- Built-in vision tools of deep learning to achieve character and object recognition,
- object sorting, etc.
- Adopts high speed and large capacity memory medium for saving images.
- Supports multiple communication protocols, including TCP, UDP, Serial, FTP, Modbus, etc.
- Supports indicators displaying device status.
| Resolution | 6 MP |
| Deep Learning / AI | Feature Matching, Fixture, Blob Detection, Character Location, Classification, Object Detection, Character Recognition |
| Mono/Color | Mono |
| Communication | Ethernet/IP, Profinet, Modbus, FTP, Digital I/O, Serial Port, TCP Client/Server, UDP Server |
| Single Pixel Accuracy | 0.012 mm |
| Memory | 4 GB |
MV-SC7060M, 6 MP
- Built-in vision tools of deep learning to achieve character and object recognition, object sorting, etc.
- Supports semi-automatic focus to get clearer images.
- Adopts high speed and large capacity memory medium for saving images.
- Supports multiple communication protocols, including TCP, UDP, Serial, FTP, Modbus, etc.
- Supports indicators displaying device status.
| Resolution | 6 MP |
| Deep Learning / AI | Feature Matching, Fixture, Blob Detection, Character Location, Classification, Object Detection, Character Recognition |
| Mono/Color | Mono |
| Communication | Ethernet/IP, Profinet, Modbus, FTP, Digital I/O, Serial Port, TCP Client/Server, UDP Server |
| Single Pixel Accuracy | 0.009 mm |
| Memory | 4 GB |
MV-SC7050PM, 5 MP
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 5 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Edge Width Measurement |
| Recognition Tools | OCR, Code Recognition, DL Object Detection |
| Deep Learning / AI | Defect Detection |
MV-SC5016C, 1.6 MP
- Integrates general vision algorithms to achieve location
- measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
| Resolution | 1.6 MP |
| Existence Tools | Pattern Existence, Spot Existence, Edge Existence, Circle Existence, Line Existence |
| Counting Tools | Pattern Count, Spot Count, Edge Count |
| Measurement Tools | Brightness Analysis, Contrast Measurement, Greyscale Size, Diameter Measurement, Width Measurement, Line Angle, Line to Line Angle, Point to Line, Color Size, Edge Width Measurement |
| Recognition Tools | OCR, Color Recognition, Color Contrast, Code Recognition |
| Mono/Color | Color |
